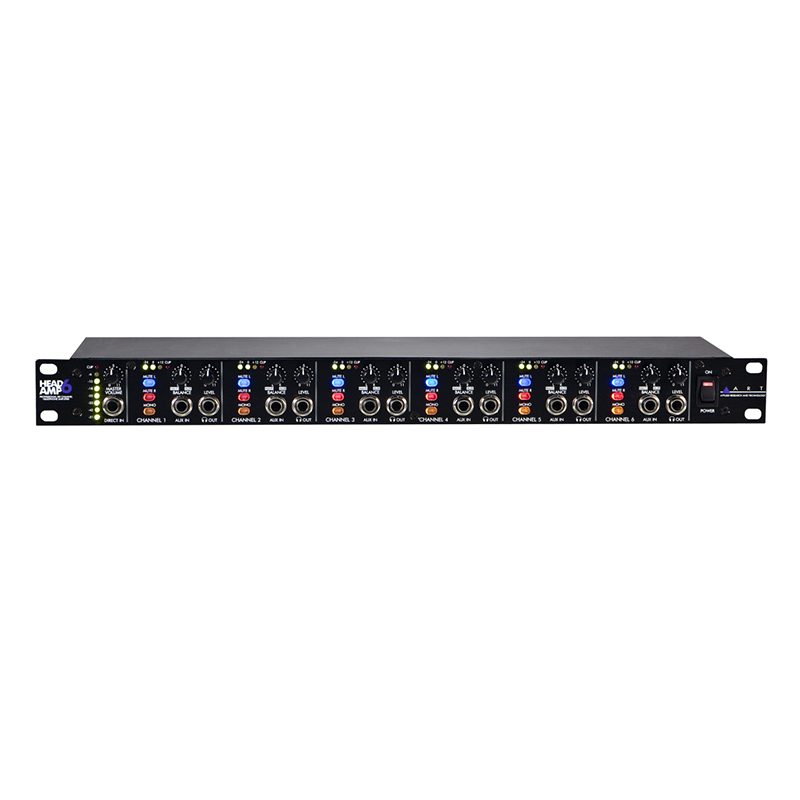

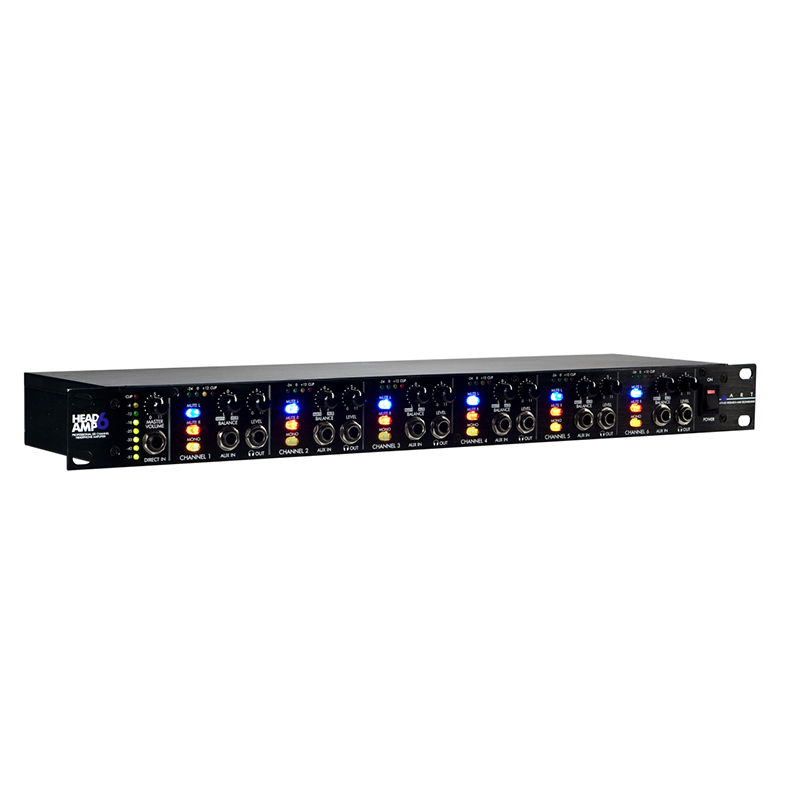

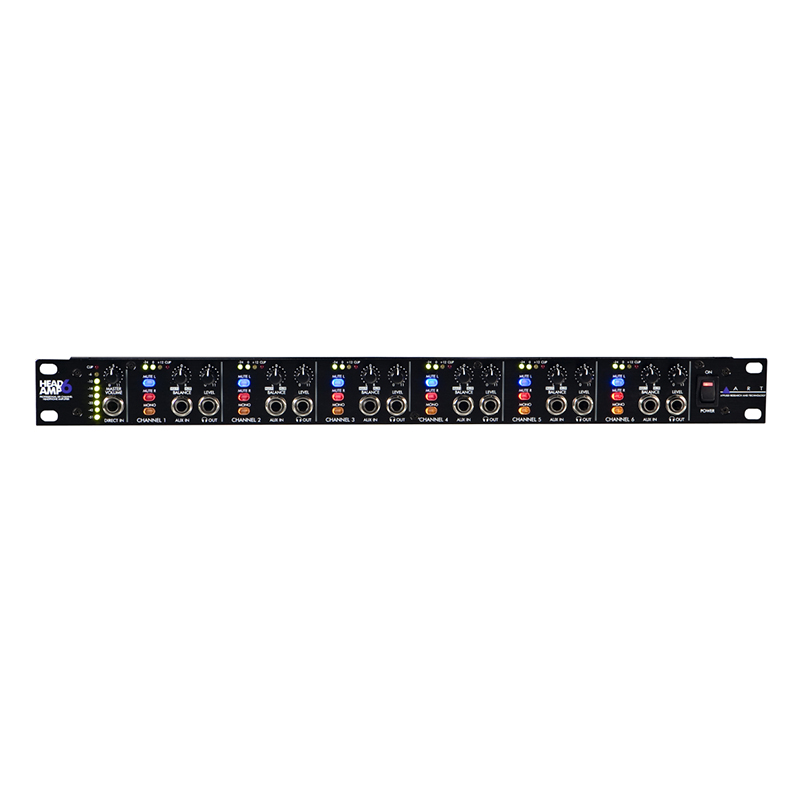

ART HeadAmp6 6-channel Headphone Amp

₨ 60,000.00

6x Output Channels
Stereo XLR and 1/4″ Balanced Inputs
1/4″ Direct In Overrides Rear Inputs
3x 1/4″ Headphone Outputs per Channel
Supports up to 18 Pairs of Headphones
Aux In with Main / Aux Balance per Channel
Mute L, Mute R, and Mono Switches per Channel
LED Meters with Clip Indicators for Main Bus and Output Channels
1U Rackmount

Categories: Audio Accessories, Headphones

Description

The HeadAmp 6 is a six-channel stereo headphone amplifier with three outputs per channel, so up to eighteen sets of headphones can be connected simultaneously.

Each channel features an independent auxiliary input with a balance control, so its easy to dial in a more me mix. Additional switches mute the left or right signal and sum the channel to mono, so listeners have the control to hear exactly what they need.

LED meters with clipping indicators for the main signal bus and each output channel confirm signal activity at a glance.

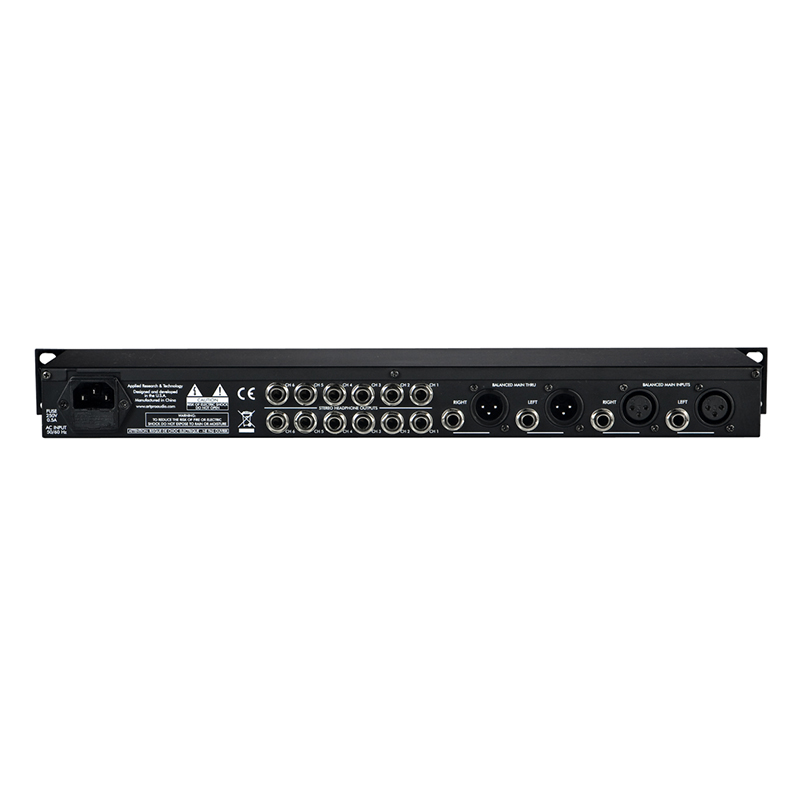

The rear panel has balanced XLR and 1/4 inputs, and Thru connectors to chain multiple units for even more outputs. A Direct input on the front panel overrides the rear signal, so you can quickly switch sources without getting behind the rack.

The HeadAmp 6 offers the most outputs of any ART headphone amplifier, and is ideal for working with large ensembles.

Specifications

Inputs	XLR, 1/4″
Outputs	XLR, 1/4″
Input Impedance	40K Ω Main, 10K Ω Direct, 15K Ω Aux In
Output Impedance	<12 ΩHeadphones
Maximum Input Level	+21 dBu
Maximum Output Level	150mW (600 Ω Headphones) 500mW (32 Ω Headphones) 150mW (8 Ω Headphone
Maximum Gain	22 dB
Total Harmonic Distortion	<.01% Typical
Signal to Noise Ratio	>90dB Typical
CMRR	>40 dB
Power Requirements	120 VAC / 50-60 Hz, or 230 VAC / 50 Hz, 15 W
Dimensions (LWH)	6″ x 19″ x 1.75″, 15.2 cm x 48.3 x 4.45
Weight	5.3 lbs. (2.4kg)
